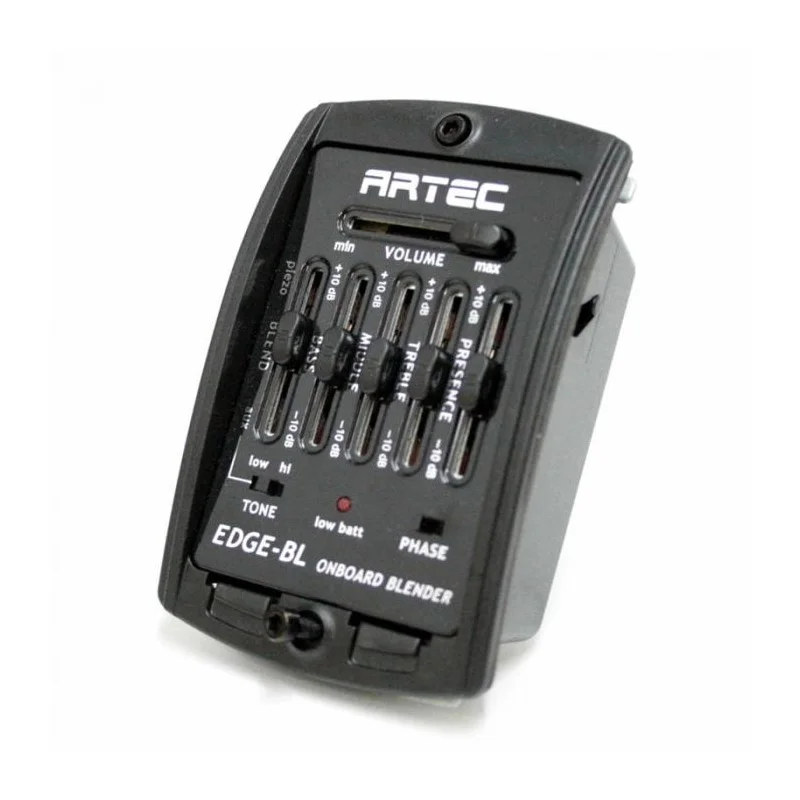

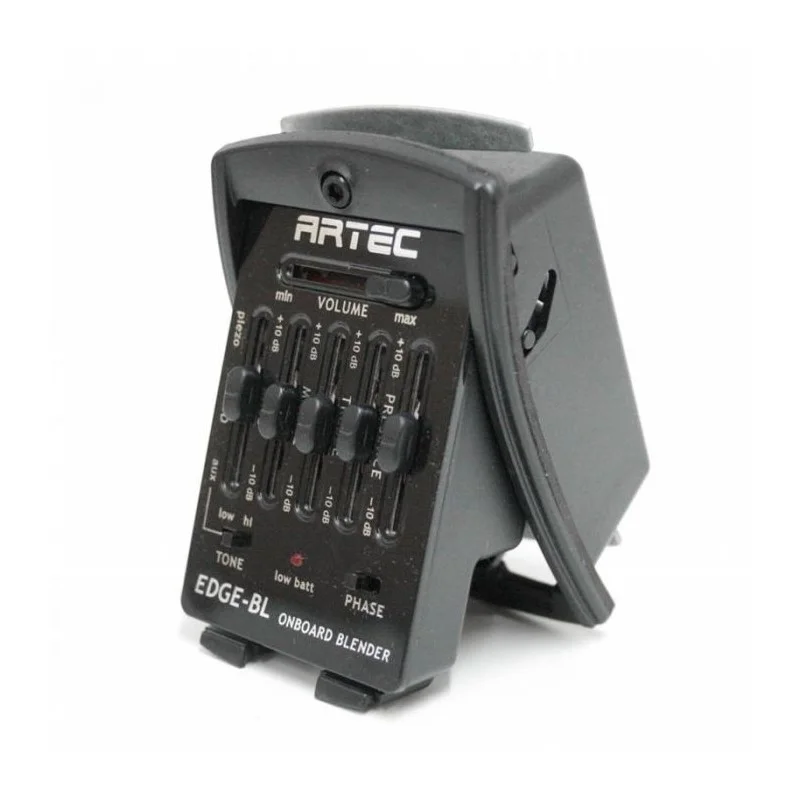

The EDGE series preamps have been developed with a special concept, going beyond the common design of other amplifiers on the market. Without mounting screws, they use a double-locking internal clamping system, allowing for easy installation. This mechanism prevents cracking or breaking the guitar’s side panel.
In addition, they feature a FLIP-HOOD system, which allows the panel to be removed, placing the battery underneath, freeing up space for the controls and making the sound clearer and more concise.

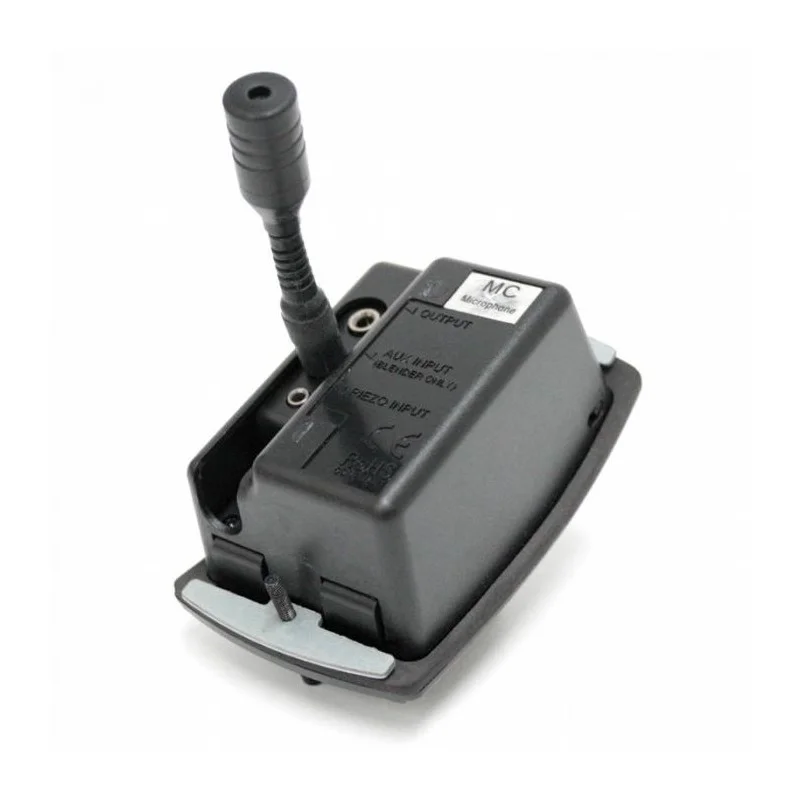

The EDGE-BL-MC model has a 4-band EQ and, in addition to the piezo pickup connection, has an auxiliary input for connecting a condenser microphone.

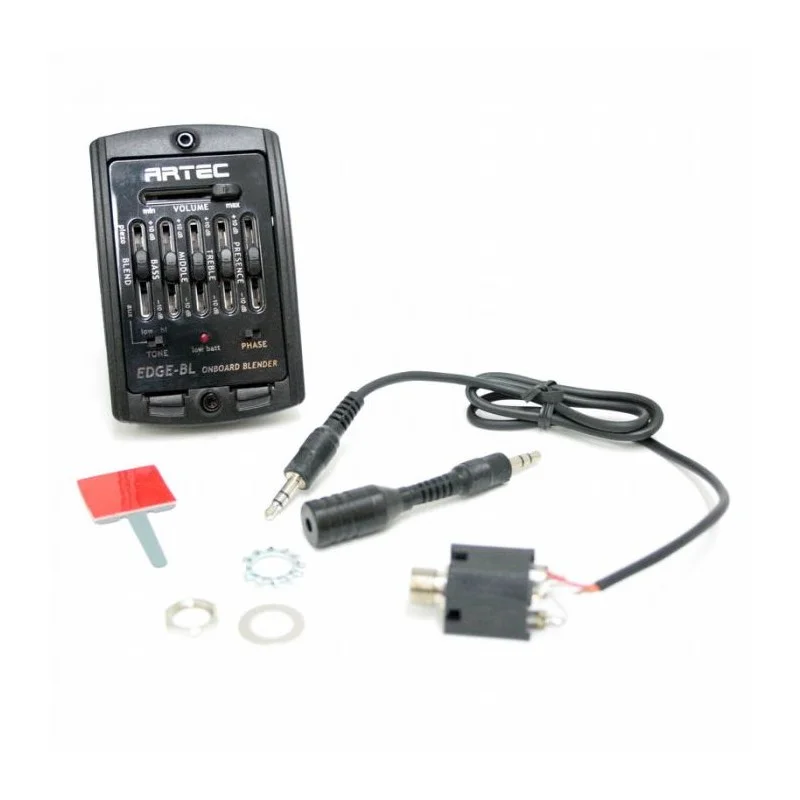

Includes:
- Jack output connector
- Cable hook and screws
- Condenser microphone
- PIEZO PICKUP NOT INCLUDED
- BATTERY NOT INCLUDED
Specs:
- Low battery indicator LED
- Phase inversion switch
- Bass: ±10 dB
- Midrange: ±10 dB
- Treble: ±10 dB
- Presence: ±10 dB
- Blend: Piezo-aux
- Low-Hi switch
- Piezo pickup input: 2.5 mm mono jack
- Condenser microphone input: 3.5 mm mono jack
- Unbalanced output jack: 1/4″ phone jack
- Flip-Hood battery compartment
- Master volume
- Compatibility: Guitars or basses with a minimum body width of 60 mm
- Located on the top side of the body (see diagram)
- Approximate dimensions: 90 x 56 x 42 mm
